High-Performance HPLC

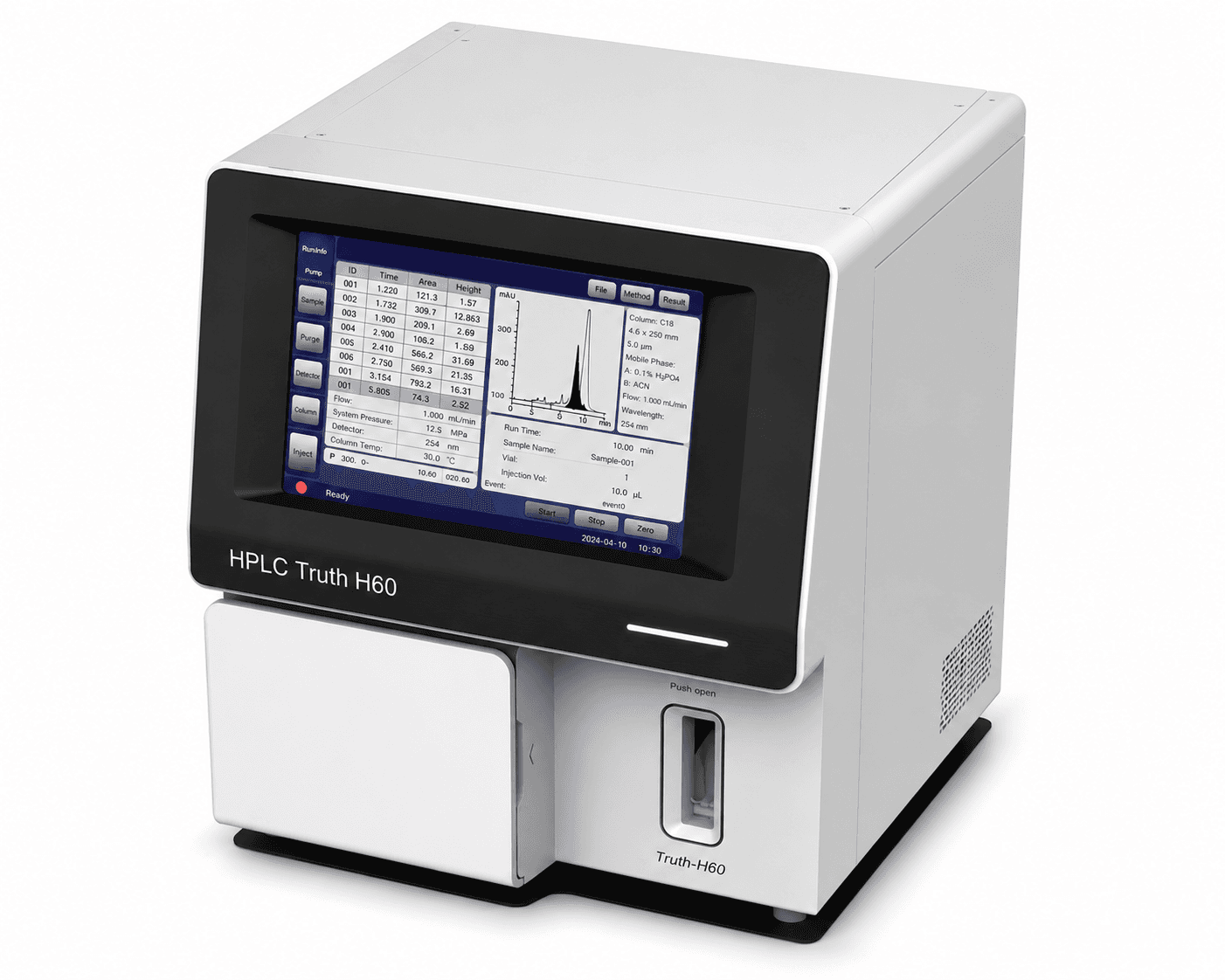

Truth-H60 Specifications

Compact automated hemoglobin analysis platform engineered for smaller clinical laboratories demanding uncompromising precision.

bloodtype

Whole Blood

Standard venous collection

water_drop

Fingertip Blood

Micro-capillary collection

Technical Specifications

Detailed operational and physical parameters.

ISO 15189 Compliant

Parameter	Value
Methodology Primary measurement technology	Ion-Exchange High-Performance Liquid Chromatography (HPLC)
Testing Item Analyte measured	Glycohemoglobin (HbA1c)
Test Time Approximate time per sample	≈ 60 seconds / sample
Sample Capacity Autoloader storage	30 positions (3 racks)
Measurement Range Clinical range	3% - 18% HbA1c
Precision (CV) Repeatability	≤ 1.8% (within-run)
Sample Type Accepted sample types	Venous whole blood, fingertip blood, hemolyzed blood
Sample Volume Volume required per test	10 μL (whole blood)
Calibration Calibration method	2-point automatic calibration, IFCC/NGSP traceable
Photometer Detection system	Single-wavelength LED photometer (415 nm)
Display User interface	8.4-inch color touchscreen
Reagent System Included reagents	Closed reagent system: Eluent A/B and hemolysis solution
Storage Capacity On-board records	Up to 20,000 results
Printer Printing options	Internal thermal printer; supports external reporting
Communication Data interfaces	RS232, RJ45 (Ethernet), USB; HL7 compatible
Ambient Temperature Operating environment	10°C - 30°C (Optimal: 20°C - 25°C)
Column Temp Control Thermal control	Built-in controller: 45.0°C ± 0.1°C
Power Supply Electrical requirements	AC 100V-240V, 50/60Hz, 150VA
Dimensions WxDxH	520 × 480 × 500 mm
Weight Net weight	Approx. 42 kg
Certification Regulatory	CE, ISO 13485, NGSP/IFCC compatible
