High-Performance HPLC

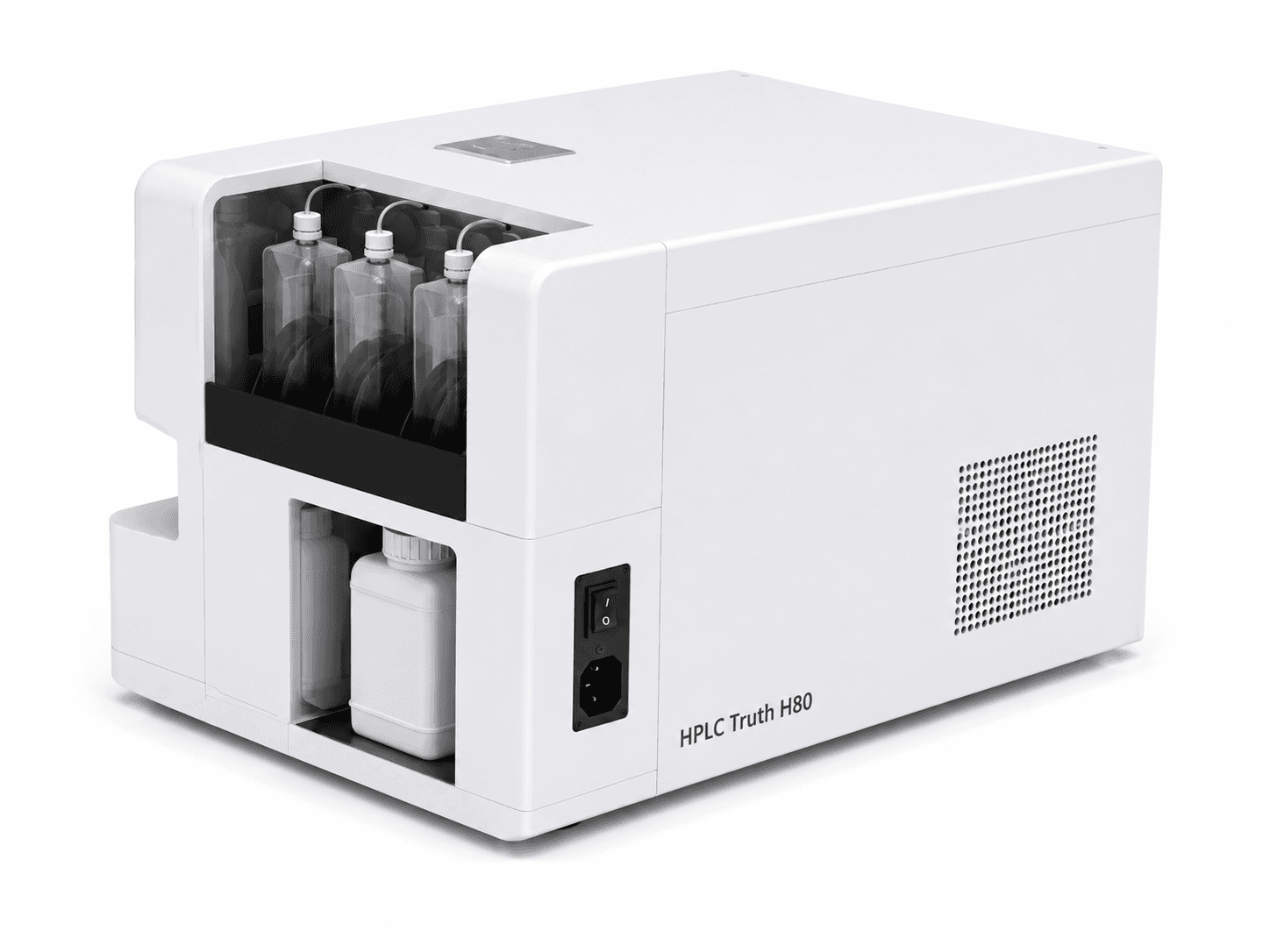

Truth-H80 Specifications
High-throughput automated hemoglobin analysis platform engineered for clinical laboratories demanding uncompromising precision and speed.
scienceCompatible Sample Types
bloodtype
Whole Blood
Standard venous collection
water_drop
Fingertip Blood
Micro-capillary collection
Technical Specifications
Detailed operational and physical parameters.
ISO 15189 Compliant
| Parameter | Value |
|---|---|
Methodology Primary measurement technology | Ion-Exchange High-Performance Liquid Chromatography (HPLC) |
Testing Item Analyte measured | Glycohemoglobin (HbA1c) |
Test Time Approximate time per sample | ≈ 90 seconds / sample |
Sample Capacity Autoloader storage | 110 positions (11 racks) |
Measurement Range Clinical range | 3% - 18% HbA1c |
Precision (CV) Repeatability | ≤ 1.5% (within-run) |
Sample Type Accepted sample types | Venous whole blood, fingertip blood, hemolyzed blood |
Sample Volume Volume required per test | 10 μL (whole blood) |
Calibration Calibration method | Automatic 2- or 4-point calibration, IFCC/NGSP traceable |
Photometer Detection system | Dual-wavelength LED photometer (415 nm & 500 nm) |
Display User interface | 10.1-inch color touchscreen |
Reagent System Included reagents | Closed reagent system: multiple eluents and hemolysis solution |
Storage Capacity On-board records | Up to 50,000 results with chromatograms |
Printer Printing options | Internal thermal printer; supports external reporting |
Communication Data interfaces | RS232, RJ45 (Ethernet), USB; HL7 compatible; LIMS/LIS integration |
Ambient Temperature Operating environment | 10°C - 30°C (Optimal: 20°C - 25°C) |
Column Temp Control Thermal control | Active thermal controller: 45.0°C ± 0.1°C |
Power Supply Electrical requirements | AC 100V-240V, 50/60Hz, 150VA |
Dimensions WxDxH | 580 × 600 × 520 mm |
Weight Net weight | Approx. 65 kg |
Certification Regulatory | CE, ISO 13485, NGSP, IFCC |
