High-Performance HPLC

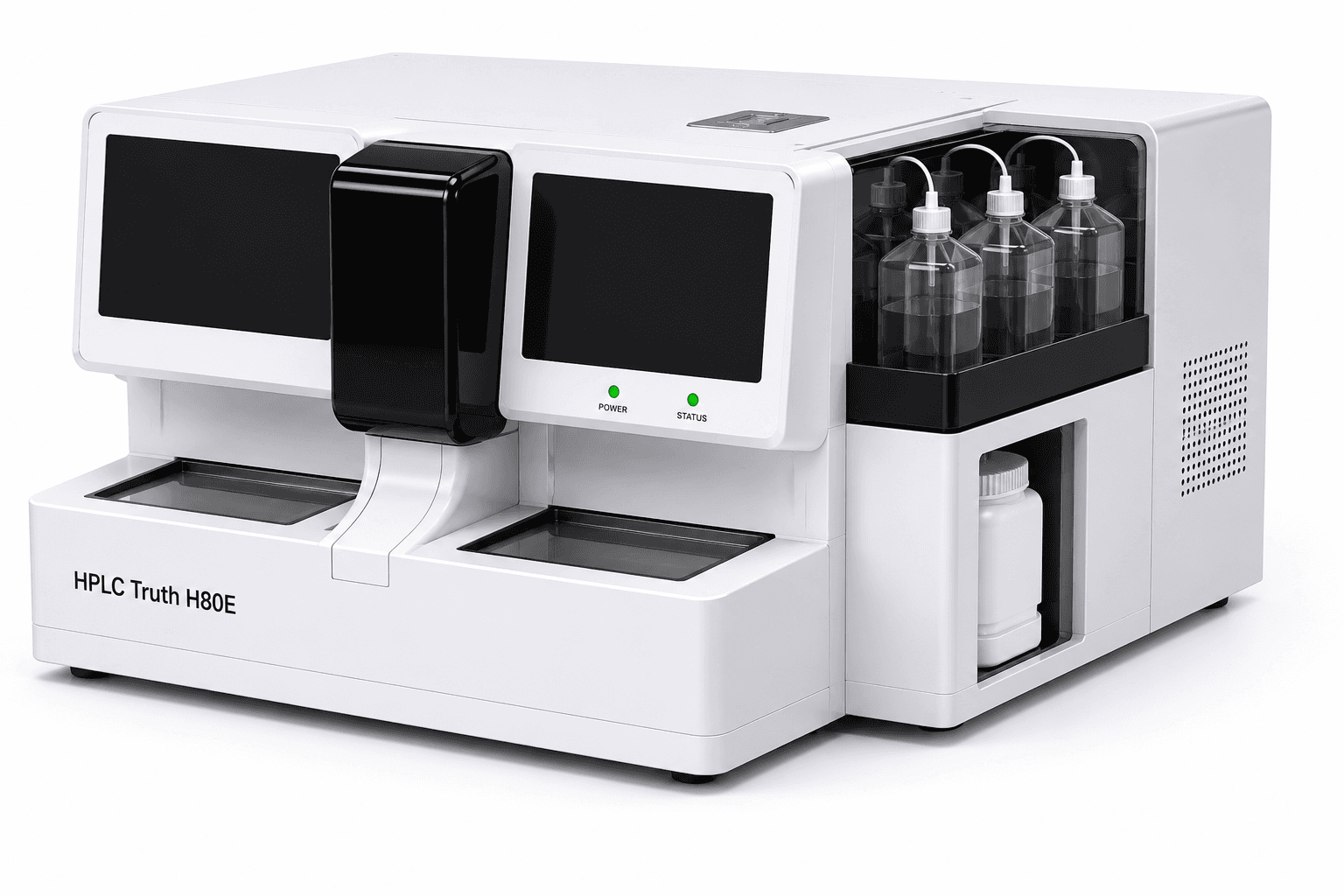

Truth-H80E Specifications

Variant-capable automated hemoglobin analysis platform engineered for clinical laboratories demanding deep analytical precision.

bloodtype

Whole Blood

Standard venous collection

water_drop

Fingertip Blood

Micro-capillary collection

Technical Specifications

Detailed operational and physical parameters.

ISO 15189 Compliant

Parameter	Value
Methodology Primary measurement technology	Ion-Exchange High-Performance Liquid Chromatography (HPLC)
Testing Item Analyte measured	Glycohemoglobin (HbA1c) with variant detection
Test Time Approximate time per sample	≈ 120 seconds / sample (variant analysis enabled)
Sample Capacity Autoloader storage	50 positions (5 racks)
Measurement Range Clinical range	3% - 18% HbA1c
Precision (CV) Repeatability	≤ 1.5% (within-run)
Sample Type Accepted sample types	Venous whole blood, fingertip blood, hemolyzed blood
Sample Volume Volume required per test	10 μL (whole blood)
Calibration Calibration method	Automatic 2- or 4-point calibration, IFCC/NGSP traceable
Photometer Detection system	Dual-wavelength LED photometer (415 nm & 500 nm) with variant detection algorithms
Display User interface	10.1-inch color touchscreen
Reagent System Included reagents	Closed reagent system: multiple eluents and hemolysis solution
Storage Capacity On-board records	Up to 50,000 results with chromatograms
Printer Printing options	Internal thermal printer; supports external reporting
Communication Data interfaces	RS232, RJ45 (Ethernet), USB; HL7 compatible; LIMS/LIS integration
Ambient Temperature Operating environment	10°C - 30°C (Optimal: 20°C - 25°C)
Column Temp Control Thermal control	Active thermal controller: 45.0°C ± 0.1°C
Power Supply Electrical requirements	AC 100V-240V, 50/60Hz, 150VA
Dimensions WxDxH	480 × 520 × 520 mm
Weight Net weight	Approx. 48 kg
Certification Regulatory	CE, ISO 13485, NGSP, IFCC
